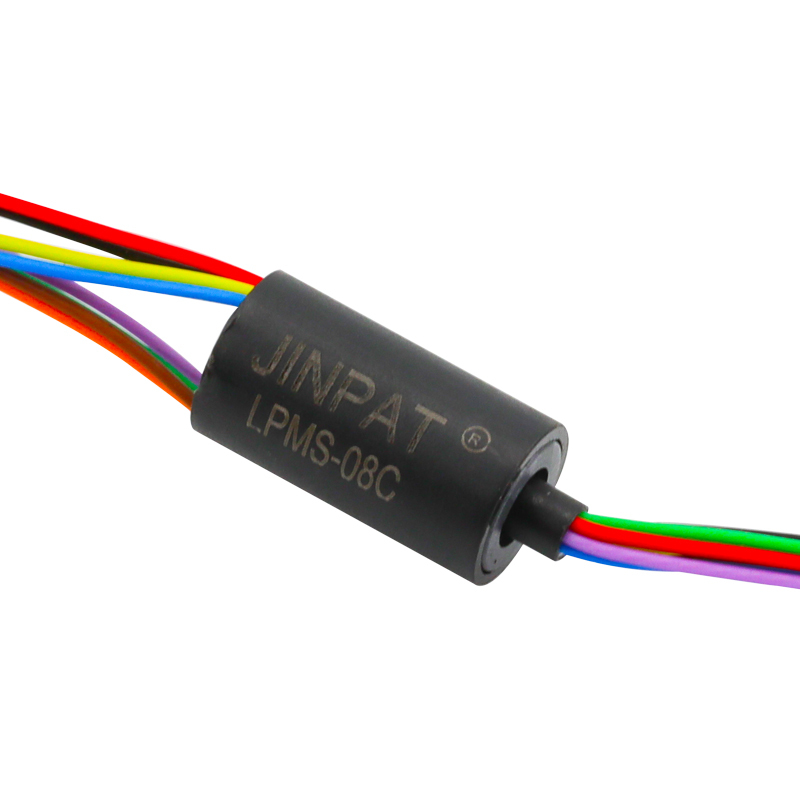

8-Wire Capsule Slip Ring 1A 48V for 300 RPM Applications

  • 8-Wire Capsule Slip Ring 1A 48V for 300 RPM Applications
उत्पत्ति के प्लेस ग्वांगडोंग, चीन
ब्रांड नाम JINPAT
मॉडल संख्या LPMS-08C
न्यूनतम आदेश मात्रा 1
मूल्य US$16.50

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
परिपथ संख्या 8 वर्तमान रेटिंग 1 क
वोल्टेज 48 वीएसी/डीसी कार्य -गति 0 ~ 300 आरपीएम
कार्य -तापमान -20~+60℃ बिजली का शोर ≤15mΩ
संपर्क सामग्री अनमोल धातु तार का आकार φ0.5 30# सिल्वर प्लेटेड टेफ्लॉन उल
सीसा तार की लंबाई रोटर: 250 ± 5 मिमी; स्टेटर: 250 ± 5 मिमी संरक्षण ग्रेड IP54
शैली कैप्सूल स्लिप रिंग प्रकार इलेक्ट्रॉनिक सहायक उपकरण
रोटेशन इंटरफ़ेस सोने के संपर्क तार का रंग कलर-कोडेड
रूपरेखा आयाम ड्राइंग का संदर्भ लें
प्रमुखता देना

8-wire capsule slip ring

,

1A 48V slip ring

,

300 RPM capsule slip ring
उत्पाद विवरण
High-Speed 8 Wires Micro Electrical Slip Ring for 300 RPM
Premium Solution for High-Speed Dome Cameras
Bargain Price Only in Alibaba
Product Description
The LPMS-08C super miniature slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Specifications
Parameter Value
Circuits 8
Current Rating 1A
Voltage 48 VAC/DC
Electrical Noise ≤15mΩ
Working Speed 0~300 RPM
Contact Material Precious metal
Wire Size φ0.5 30# silver plated Teflon UL
Lead Wire Length Rotor:250±5mm; Stator:250±5mm
Working Temperature -20~+60℃
Protection Grade IP54
Main Applications
  • Electric devices
  • Smart devices
  • Industrial machinery
  • LED industry
  • Medical equipment
  • High-Speed dome cameras
Outline Drawing
8-Wire Capsule Slip Ring 1A 48V for 300 RPM Applications 0
Product Display
8-Wire Capsule Slip Ring 1A 48V for 300 RPM Applications 1
Our Advantages
Welcome to JINPAT Electronics
Providing free custom slip rings solutions, creating propulsion for your technology
  • 12,000 square meter plant with over 500 employees
  • National High and New Technology award winner with 69 patents
  • Long-term partnerships with global enterprises
  • Over 10,000 successful designs across civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Free custom solutions for various equipment requirements
  • Fast delivery service
8-Wire Capsule Slip Ring 1A 48V for 300 RPM Applications 2
Typical Application
8-Wire Capsule Slip Ring 1A 48V for 300 RPM Applications 3
Company Information
8-Wire Capsule Slip Ring 1A 48V for 300 RPM Applications 4 8-Wire Capsule Slip Ring 1A 48V for 300 RPM Applications 5 8-Wire Capsule Slip Ring 1A 48V for 300 RPM Applications 6 8-Wire Capsule Slip Ring 1A 48V for 300 RPM Applications 7
FAQ
1. What do we do?
We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
2. What is a slip ring?
A slip ring is an electromechanical device that allows transmission of power and electrical signals between stationary and rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.
3. What kinds of slip rings do we offer?
  • Electrical Slip rings (capsule, through-hole, miniature, etc)
  • Signal Slip rings (USB2.0/USB3.0, fiber optic rotary joint, high frequency, etc)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
4. How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom/modified solutions.
5. Do you offer custom slip rings?
Yes, our engineers will develop perfect solutions for your needs. Contact us to discuss custom requirements.
